Ideal

WIRENUT 76B RED, 100 BX

worldMade in United States

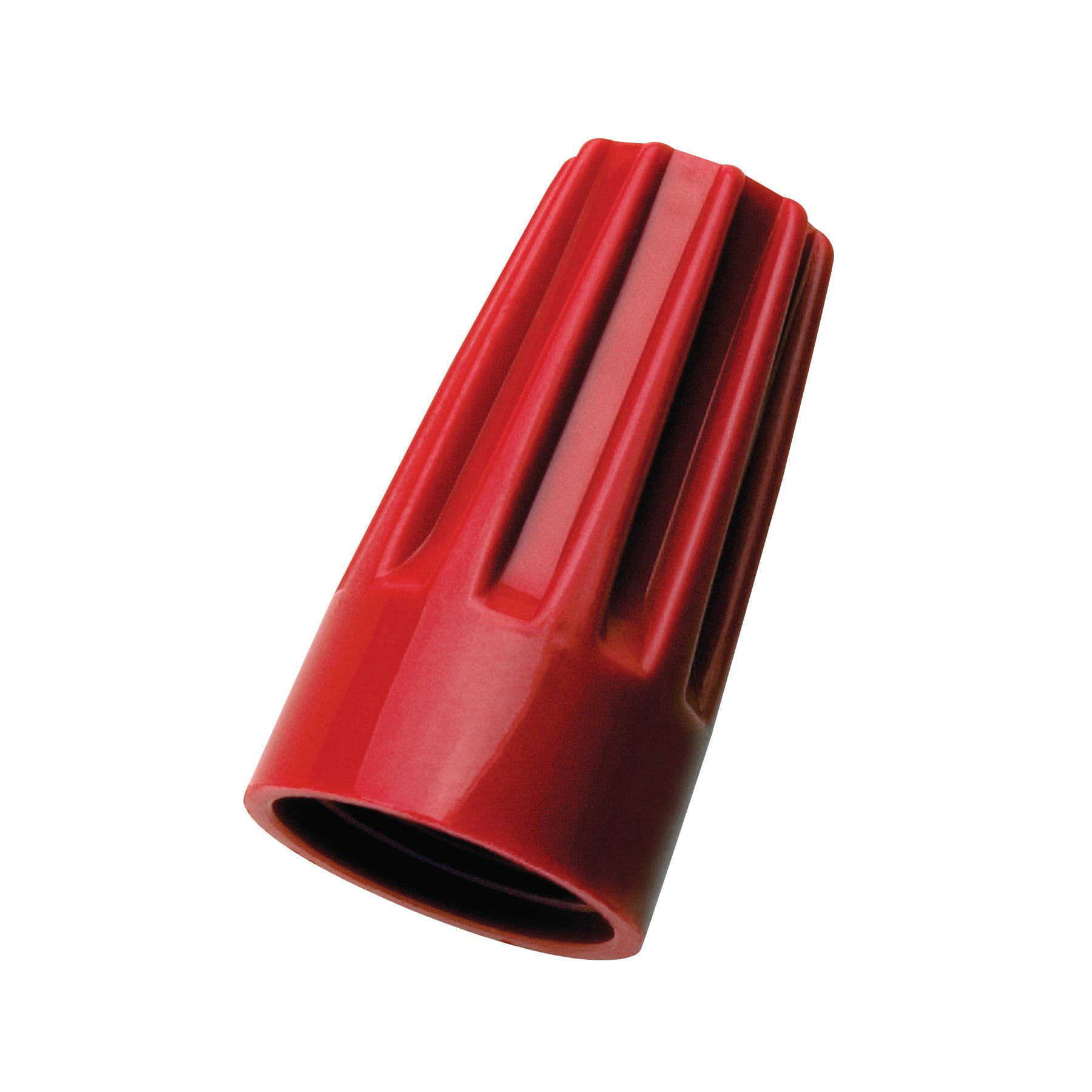

Image of SIZE 76B RED WIRECONN LPP .08 CONNECTOR

Part #: 30-076

Catalog #: IDE 30-076

$0.25
In Stock | 3500

Enter a value between 100 and 100000000 in increments of 100.

IDEAL, Wire Connector, Wire-Nut, Twist-On, Number Of Conductors: 1 to 6, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F), Conductor Range: 18 - 12 AWG, Min 2-18 MAX 4-14 w/ 1-18, Material: Flame-retardant polypropelene, Color: Red, Voltage Rating: 600 V, Model Number: 76B, Flammability Rating: UL 94V-2

UNSPSC39121445
UNSPSC CategoryTwist on wire connector
Package DescriptionStnd Pack - 100
Package TypePK
Package Quantity1.0
ManufacturerIdeal Industries
Manufacturer Item StatusActive
ApplicationInsulating or Joining 2 or more conductors
MaterialFlame-retardant Polypropelene

  • Fixed, square wire spring creates its own threads maintains a secure positive grip that will not relax over time
  • Refined range to handle all common applications
  • No pre-twisting required, positive grip design provides fast and easy installation
  • Excellent for fine stranded wire applications
  • Approved for bonding and grounding applications
  • High temperature models designed to withstand the extreme heat build-up found in high wattage light fixtures and signs
  • Deep skirt helps protect against flash over and turned back strands for maximum dielectric protection
  • Reusable for easy circuit changes and additions
