WIRING DEVICE-KELLEMS
LKG CONN, 30A 125/250V, HUB PRO

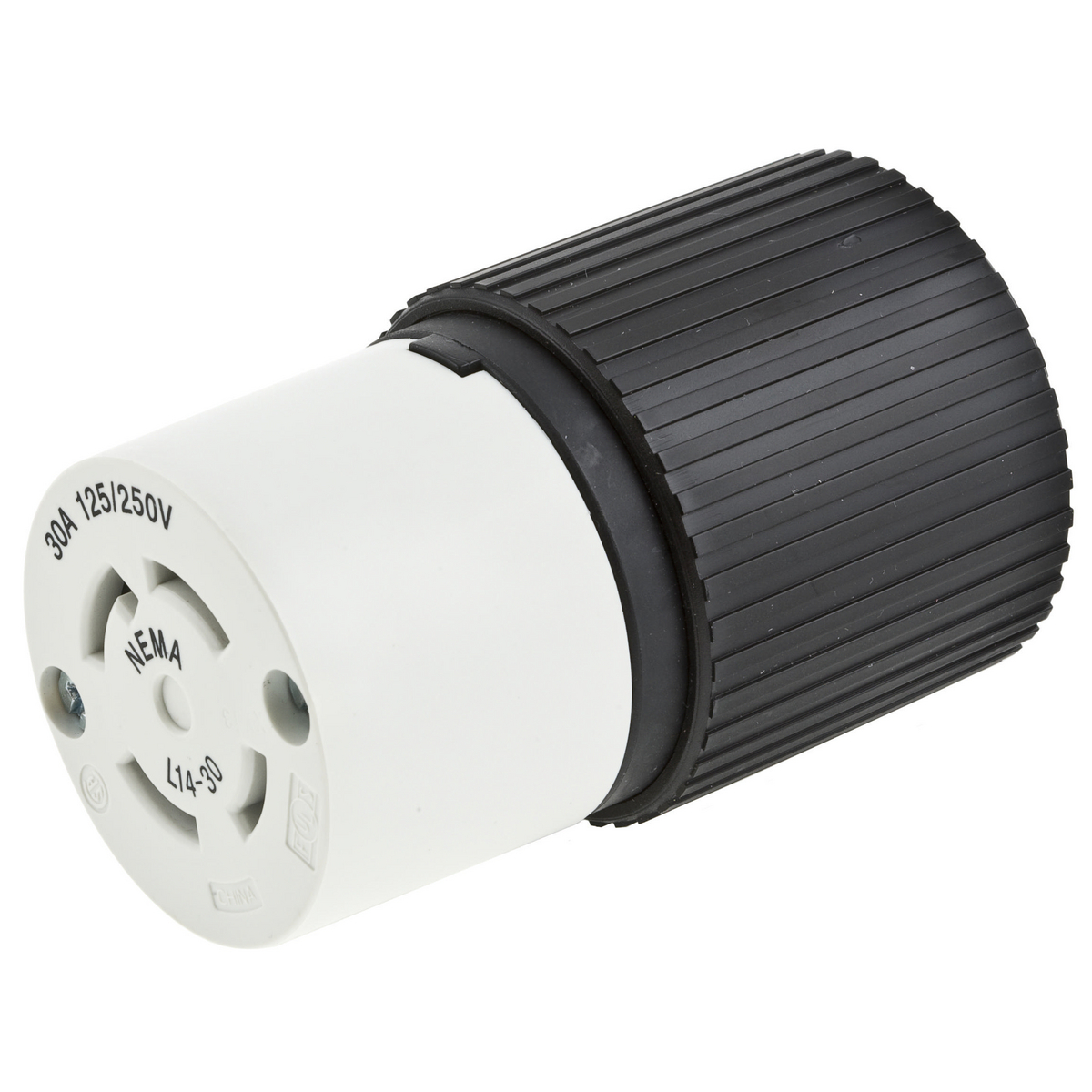

SELECT SPEC Twist-Lock® Commercial/Industrial Female Connector Body, 30A 125/250V, 3-Pole 4-Wire Grounding, L14,Screw Terminal
| UNSPSC | 39121421 |
|---|---|
| UNSPSC Category | Electrical connector assembly |
| Package Description | Stnd Pack of - 10 |
| Package Type | PK |
| Package Quantity | 1.0 |
| Manufacturer | Hubbell |
| Manufacturer Item Status | Active |
| Application | Heavy Duty |
| Material | Composite |
| Insulation | Insulated Body |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| NEMA Rating | L14-30R |
| Number of Conductors | 4-Wire Grounding |
- Supertough® nylon cover
- Visible NEMA ratings
- Captive assembly screws
- Impact modified nylon blade/contact holder
- High performance copper alloy connector contacts/blade
- Withstands 3500 VAC per UL 498 dielectric voltage
- Minimum 4.8 times rated current for 100 cycles overload
- Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
- 18 to 8 AWG flexible cord terminal accommodation
- Ratings and NEMA identification are permanently marked on device product identification
- Cord mounted
- Indoor dry unless protected by additional mean environmental conditions
- 12 to 8 AWG conductor
