WIRING DEVICE-KELLEMS
PS,IEC,CONN,3P4W, 16/20A 200-250V,4X/69K

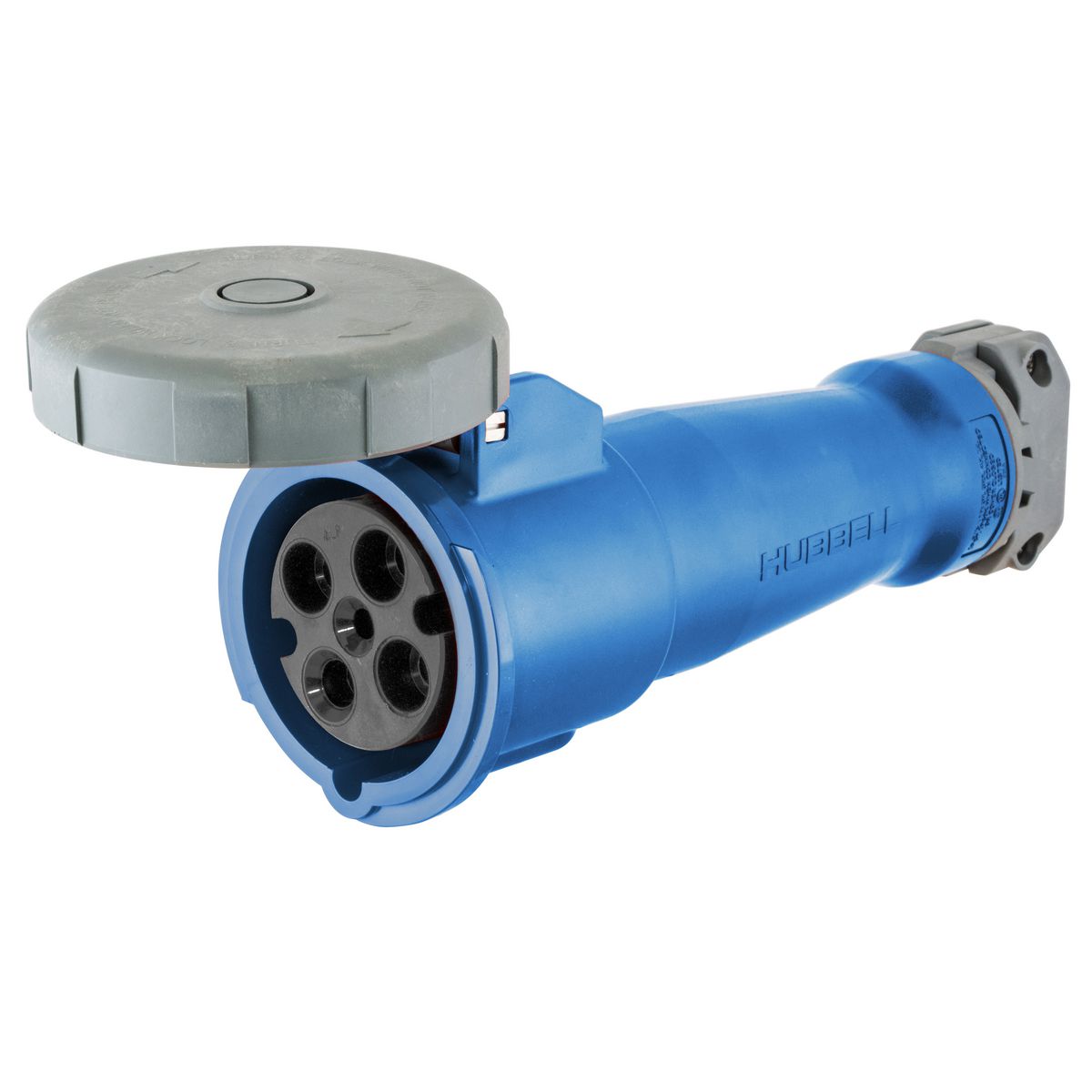

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue, Watertight
| UNSPSC | 39121421 |
|---|---|
| UNSPSC Category | Electrical connector assembly |
| Package Description | EACH |
| Package Type | PK |
| Package Quantity | 10.0 |
| Manufacturer | Hubbell |
| Manufacturer Item Status | Active |
| Application | High Ampacity Connections |
| Material | Composite |
| Insulation | Insulated Body |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| NEMA Rating | Non-NEMA |
| Number of Conductors | 4-Wire Grounding |
- 14 to 10 AWG copper wire size
- High impact thermoset contact carrier and retainer
- 300 series stainless steel terminal screws assembly screws, stainless steel (17-1 type) arm spring
- Solid neoprene gaskets
- Rynite SST35 body
- Nickel plated brass cover screw/rivet
- Polycarbonate rotating sealing disc, brass ground/phase sleeve
- Identification and ratings are a permanent part of the device housing
- 0.33 to 0.83 in cord clamp range
- Rynite SST35 cord clamps
- Solid neoprene grommet/glands
- Nickel plated brass clamp nut
- Stainless steel (300 series) cord clamp screws
- Self-closing gasketed cover
- Supertough® insulated non-metallic housing
- Watertight neoprene glad seal to prevent water ingress from entering at cable entrance
- Sequential contact engagement to prevent a momentary over voltage
- Multi contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
- Cord mounted
- Non-NEMA rating
