WIRING DEVICE-KELLEMS

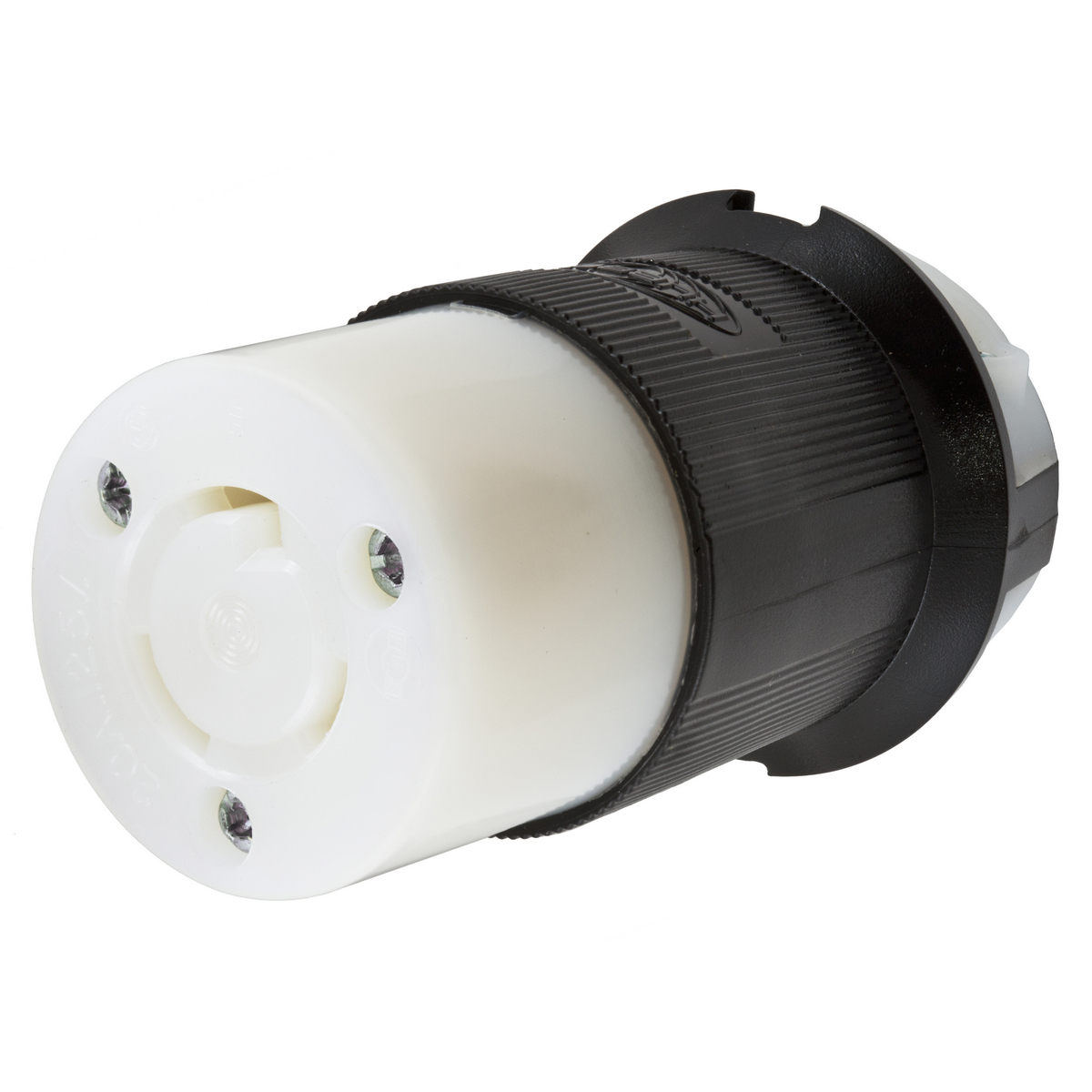

LKG CONN, 20A 125V, L5-20R, B/W
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20R, Screw Terminal, Black and White Nylon.
| UNSPSC | 39121421 |
|---|---|
| UNSPSC Category | Electrical connector assembly |
| Package Description | Stnd Pack - 10 |
| Package Type | PK |
| Package Quantity | 1.0 |
| Manufacturer | Hubbell |
| Manufacturer Item Status | Active |
| Application | Heavy Duty Industrial |
| Material | Nylon |
| Insulation | Insulated Body |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| NEMA Rating | L5-20R |
| Number of Conductors | 3-Wire Grounding |
- Clear polycarbonate terminal retainer
- Natural white nylon cord clamp material
- 0.08 in (2) steel nickel plated terminal clamp
- #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw
- #10-32 brass (green finish) multi-drive ground screw
- Steel, zinc plated multi-drive cord clamp screw
- Steel, zinc plated multi-drive body holding screw
- Natural white nylon body contact carrier material
- Brass contact spring
- Brass spring binding plate, 0.031 in (0.8) brass ground contact
- Molded-in or stamped on ratings, withstands 2000 VAC minimum dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Round portable service cords of diameters commensurate with the device rating as defined in UL standard 62, CSA C22.2 No. 49 cord accommodation
- 20 A, 12 AWG terminal accommodation
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
