WIRING DEVICE-KELLEMS

LOCKING PLUG, 50A 480V, 3P4W

worldMade in United States

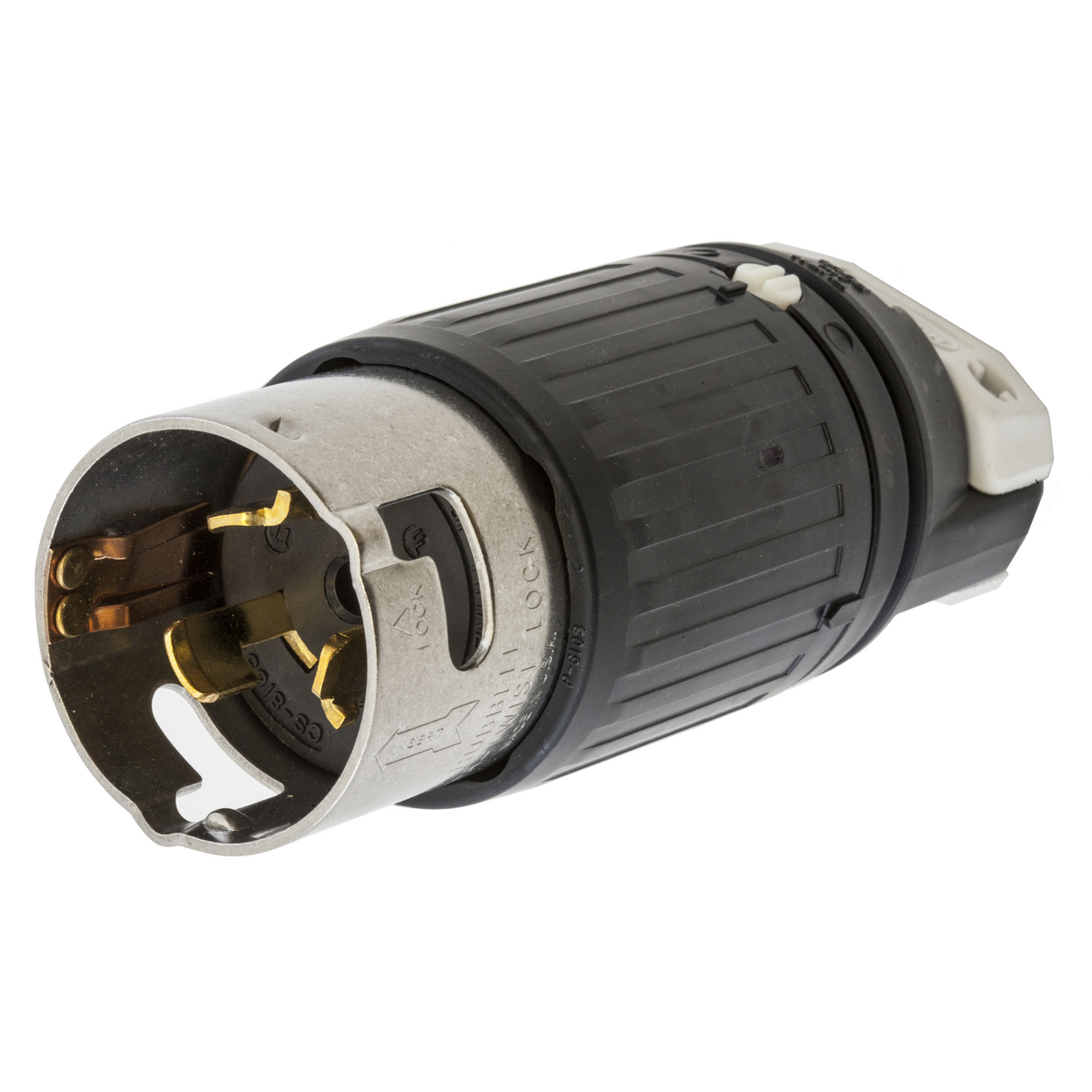

Image of 50A 3P 4W 480V PLUG TWIST LOCK PLUG

Part #: CS8165C

Catalog #: HUB CS8165C

$155.15
In Stock | 49

Enter a value between 1 and 100000000 in increments of 1.

Locking Devices, Twist-Lock®, Industrial, Male Plug, 50A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White

UNSPSC39121402
UNSPSC CategoryElectrical plugs
Package Description1/PK
Package TypePK
Package Quantity10.0
ManufacturerHubbell
Manufacturer Item StatusActive
ApplicationExtra Heavy Duty Industrial
MaterialNylon
Wire Size#8 AWG to #4 AWG
Phase3
NEMA RatingNon-NEMA

  • Supertough® nylon housing offers better impact qualities
  • Stainless steel shroud protects contacts and prevents mismating
  • Heavy duty 2-piece external cord clamp provides maximum strain relief
  • Box terminal with hex soaring threaded slug, permits high clamping pressure on conductors without damaging strands
  • Thermoplastic polyester interior provides heat resistance and impact strength
  • Glass reinforced PET blade holder, terminal retainer, terminal retainer
  • Brass blade
  • Bronze box terminal clamp
  • Stainless steel terminal screws
  • 302/304 stainless steel cord clamp screw, body holding screw
  • Non-NEMA rating
